SUKKHOI Su-25 Frogfoot

Still looking hear are some ideas. Decided to make a SUKKOI Su-25 Frogfoot details below.

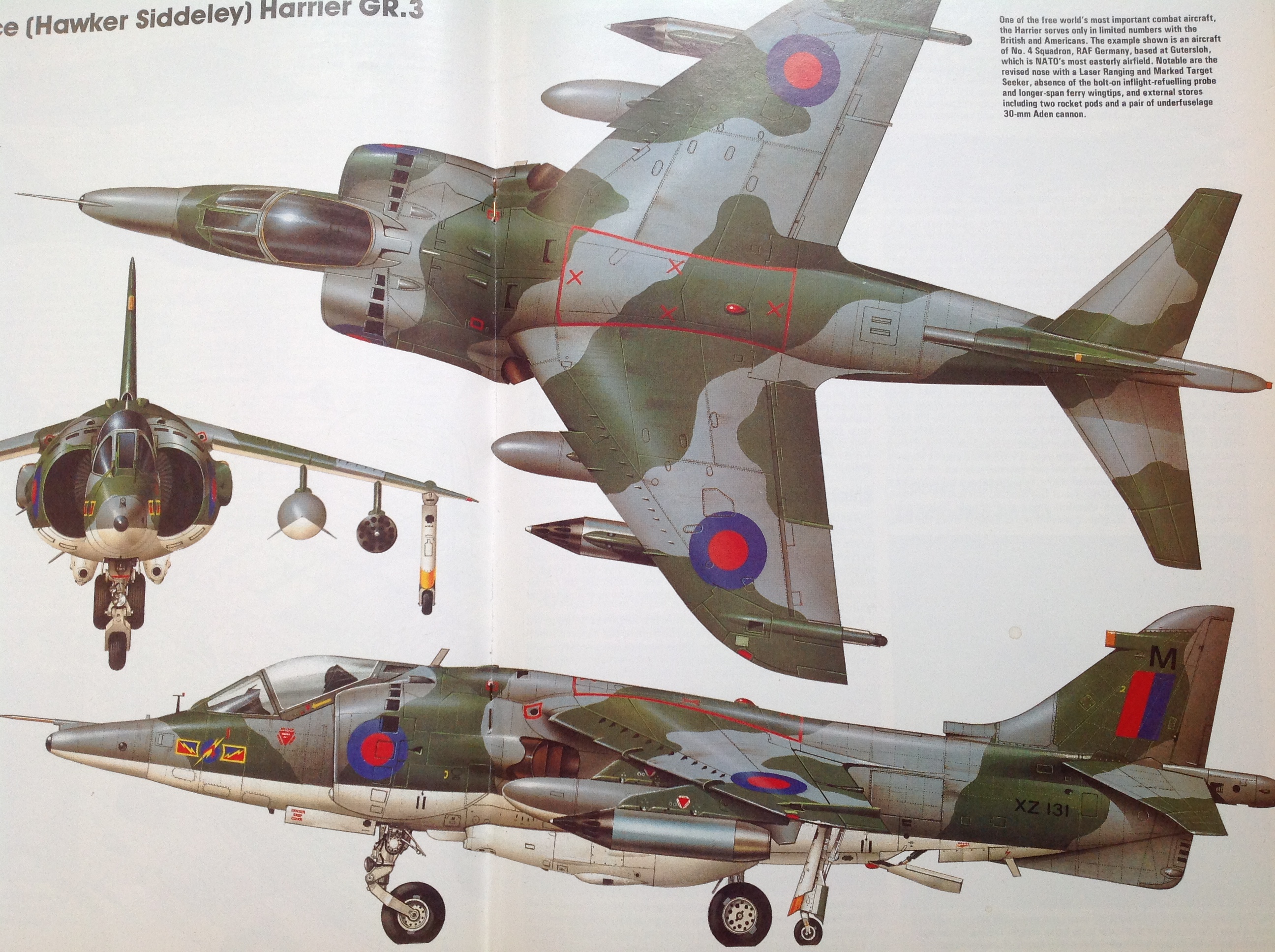

Harrier looks good, however not much wing area would need a very large fan unit 100/120 mm 6 cell, model would have to be very very light.

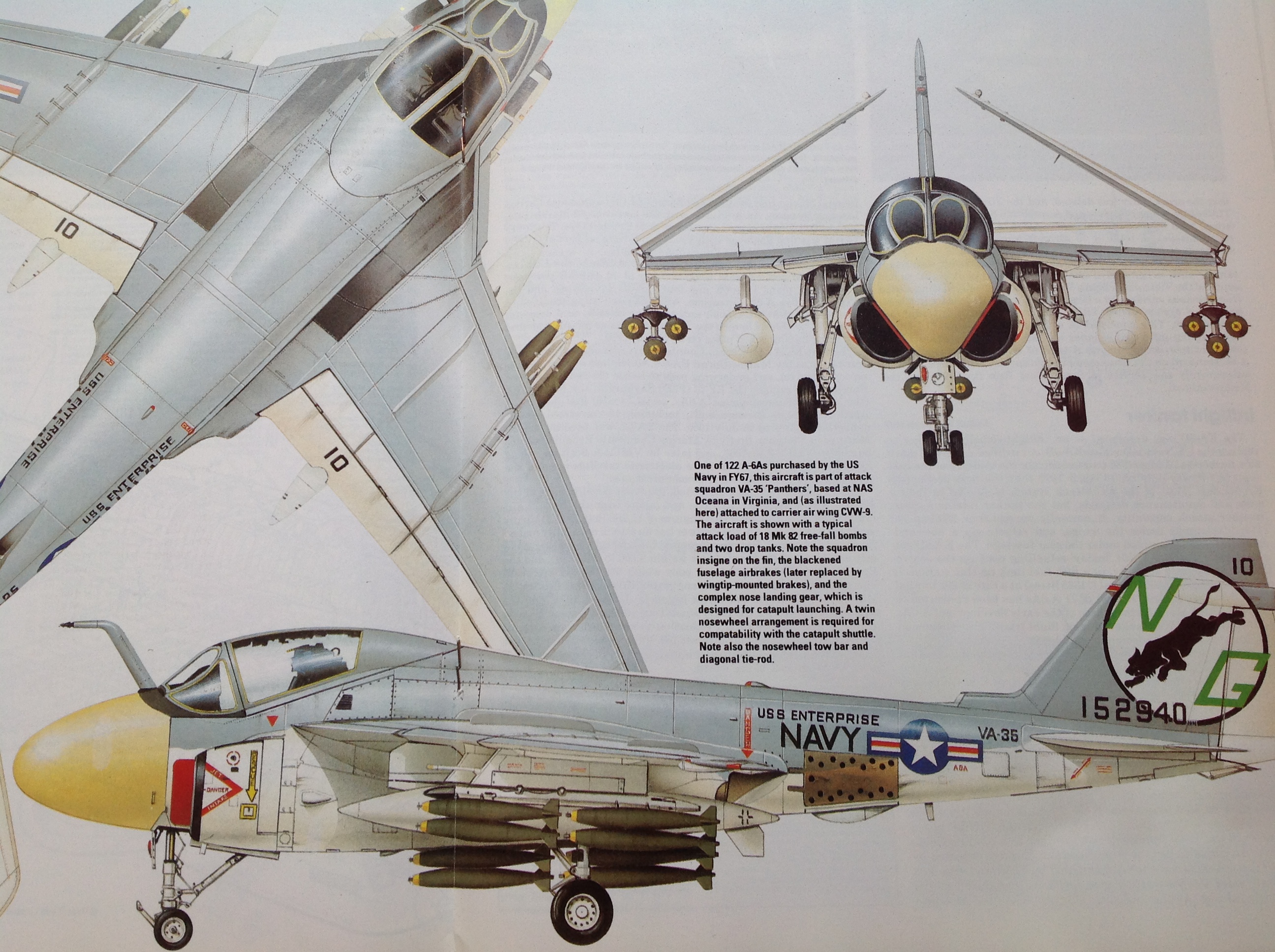

Nice looking Grumman Intruder would fly very well, retracts would or could be a problem to retract into the fuselage.

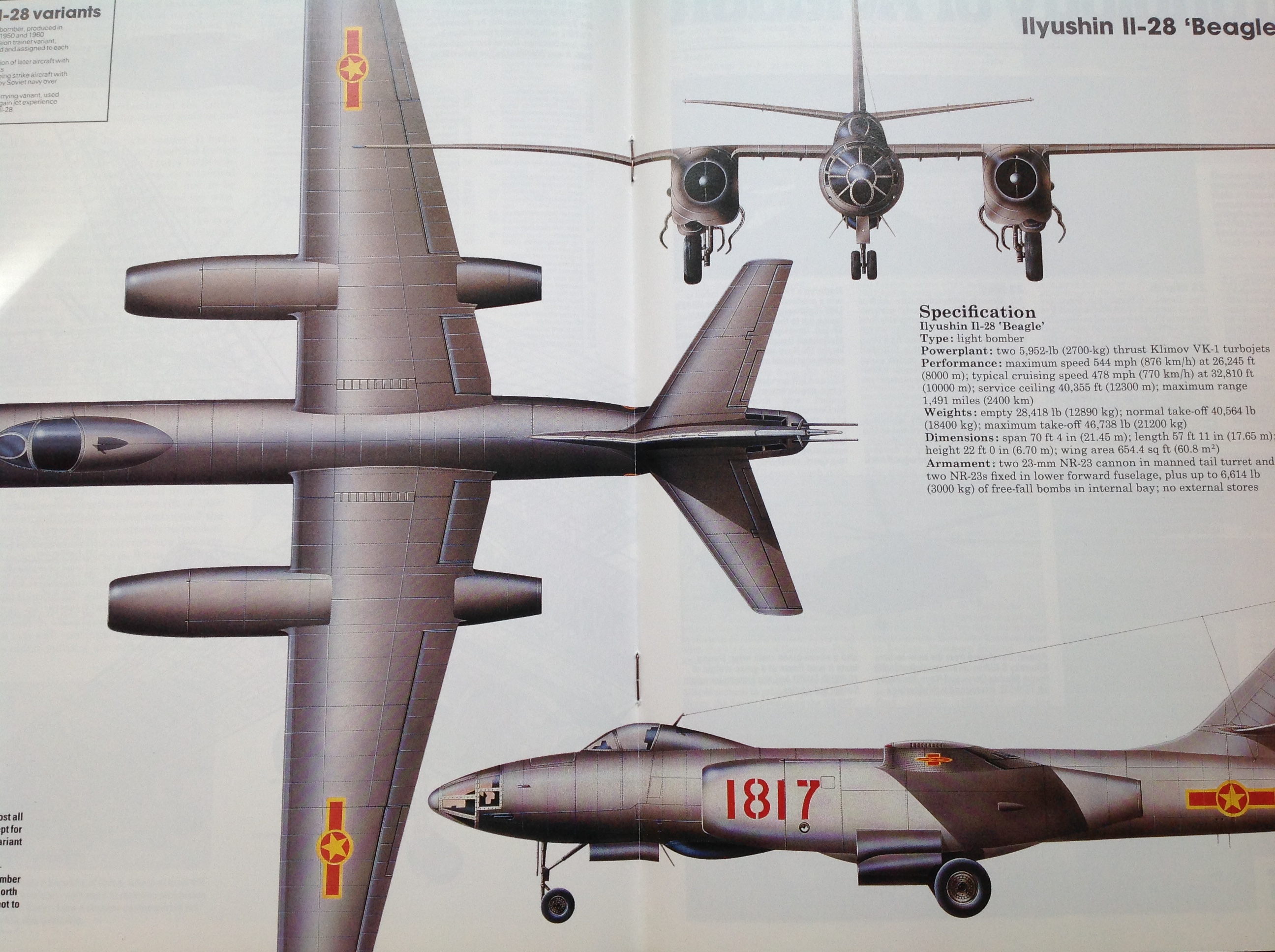

IIyushin II-28 Beagle, would also look and fly well, the only problem I see is that the engine pods are very long and to have a parallel jet tube could make the model very large.

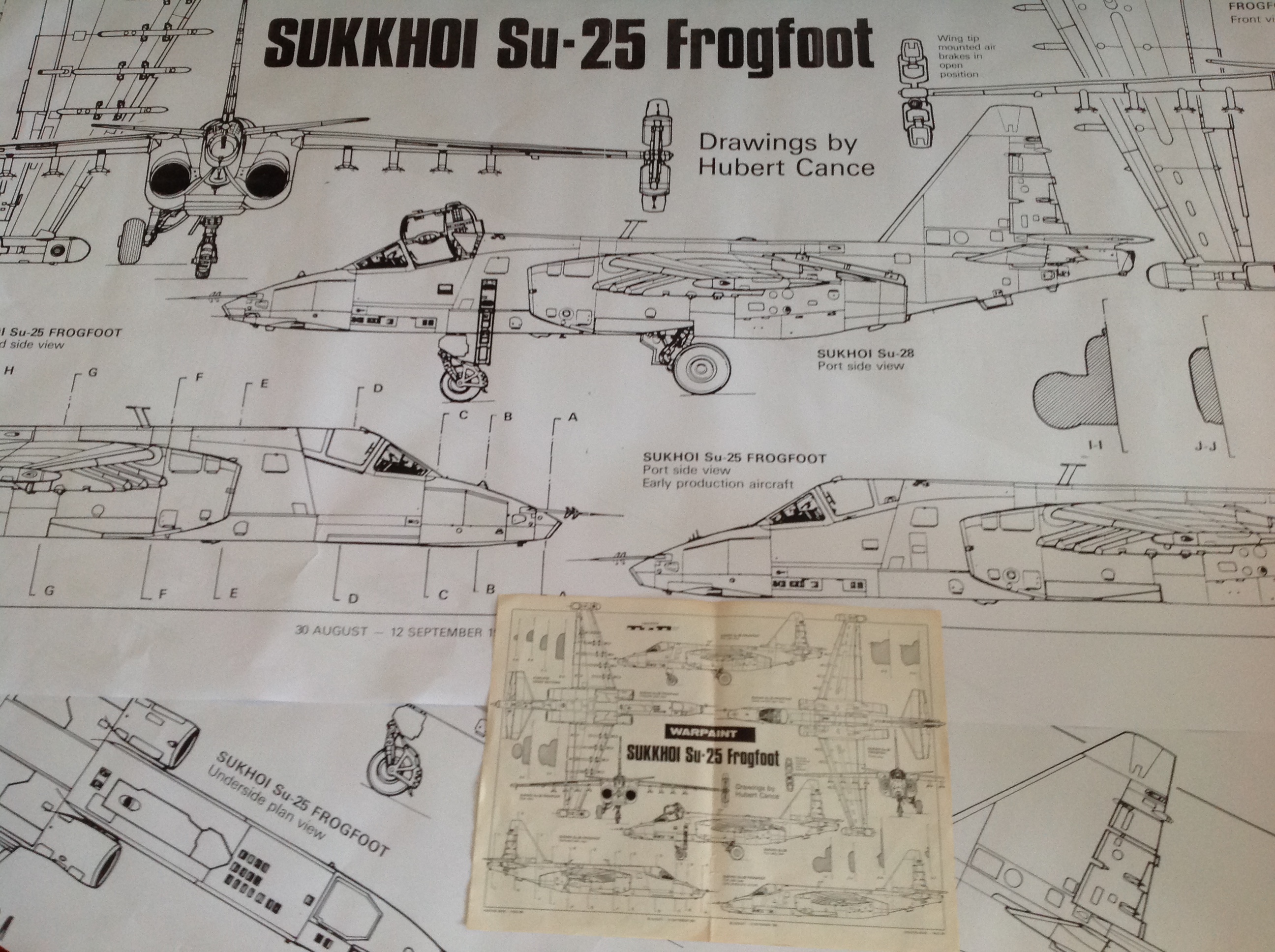

SUKKHOI Su-25 Frogfoot

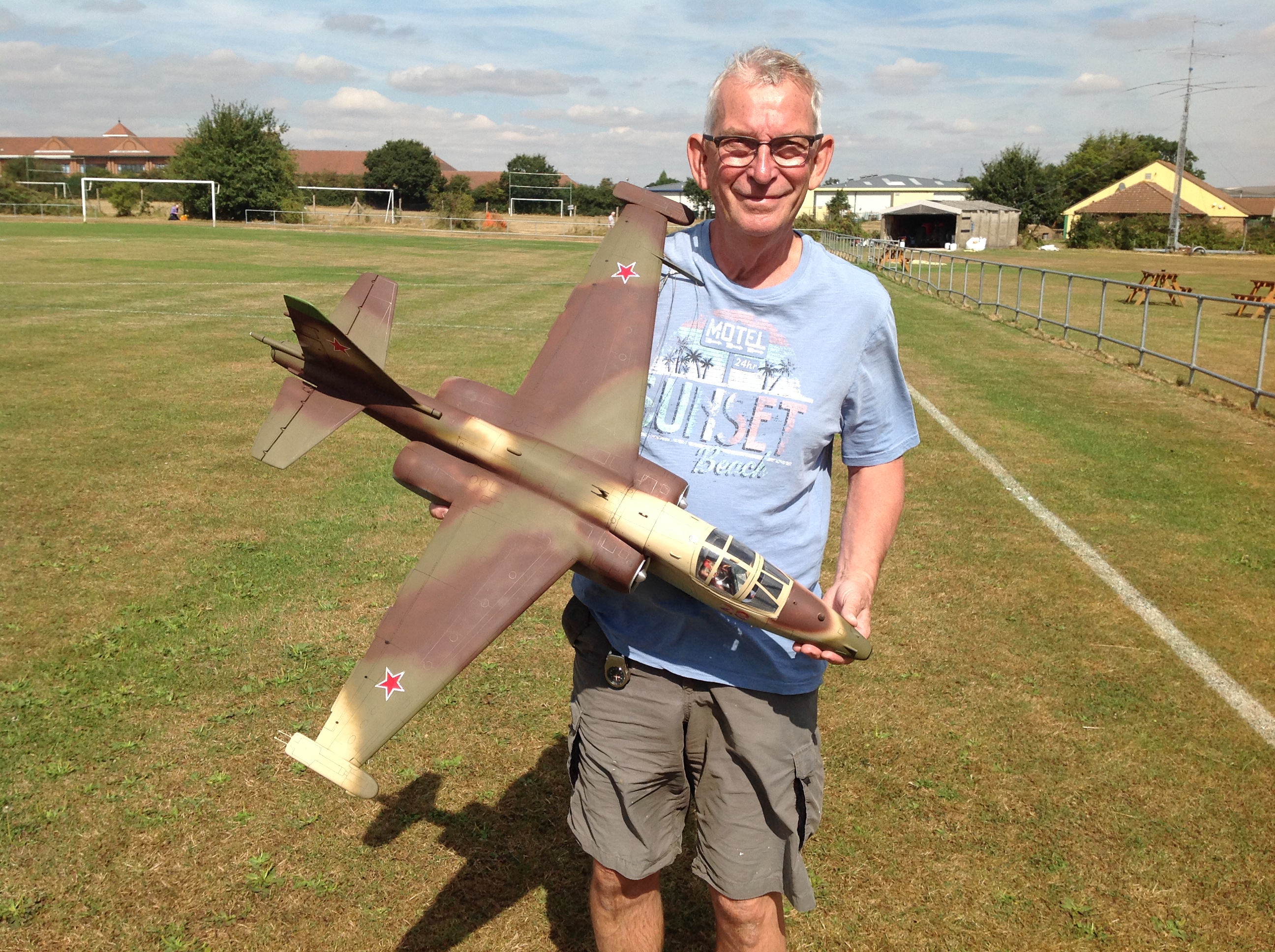

img_8132



img_7115



img_7130

50mm EDF units

img_7139

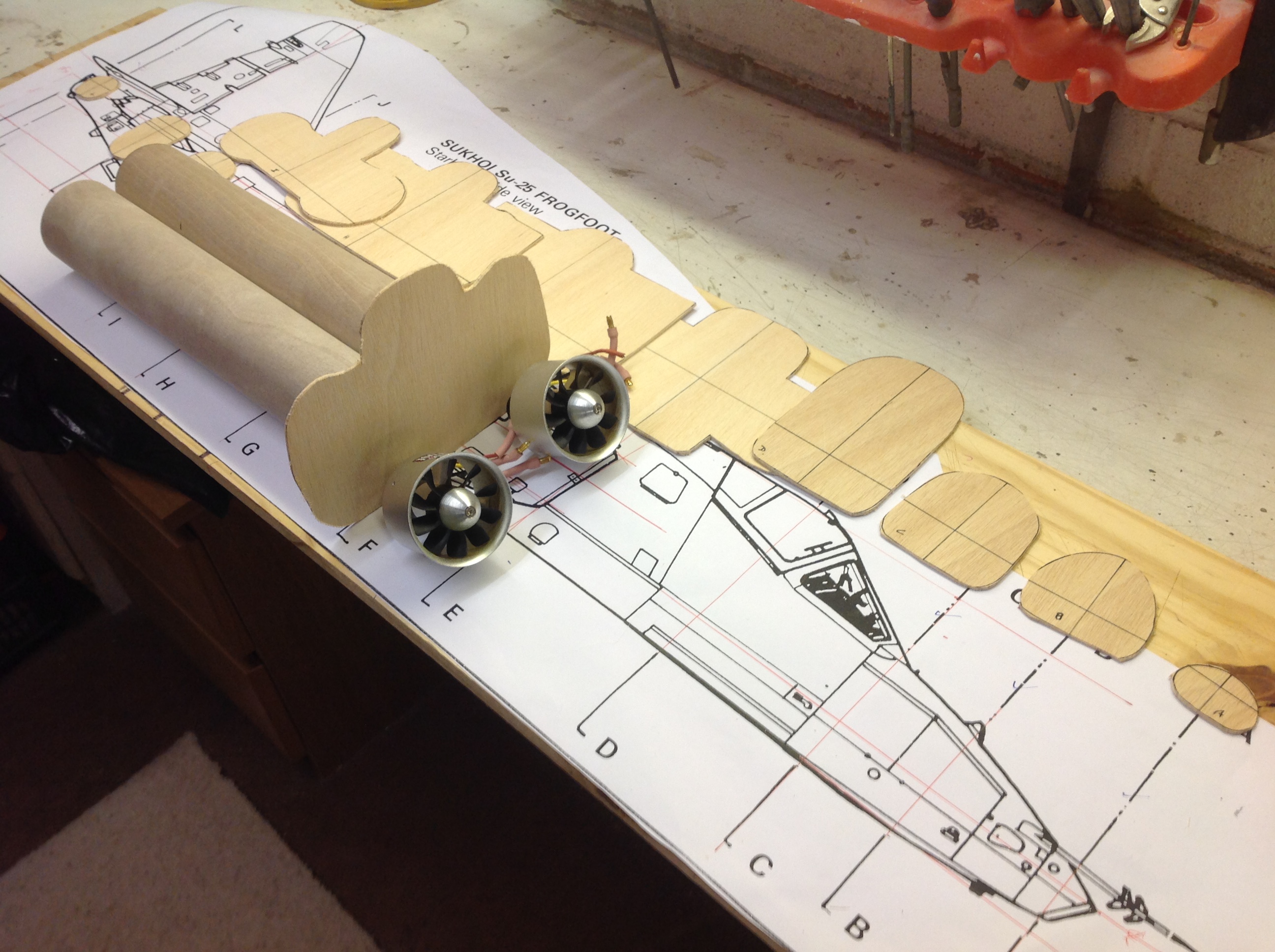

1/64 ply tubes

img_7183

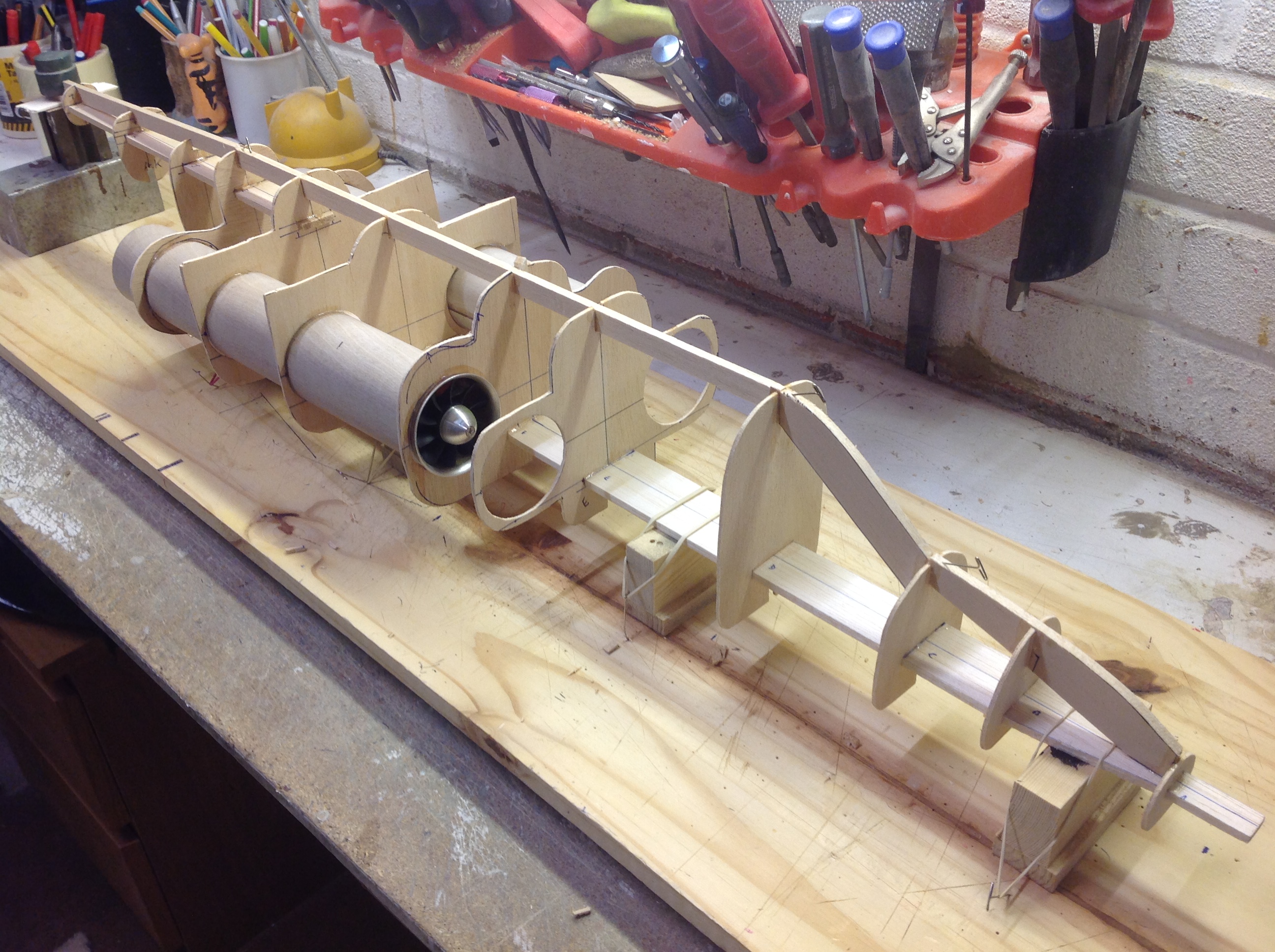

Fuselage construction using a hard balsa keel

img_7402

Work progressing

img_7405

Balsa sheet covering below

img_7448

Retracts fitted

img_7380

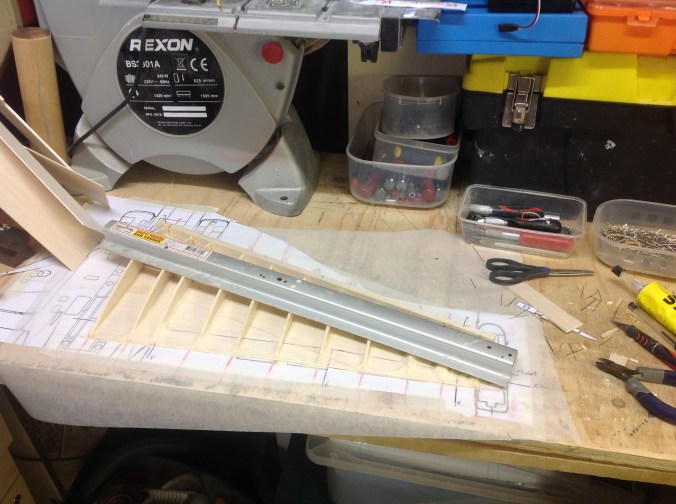

Normal wing construction then final shape sanded with a Bar sander.

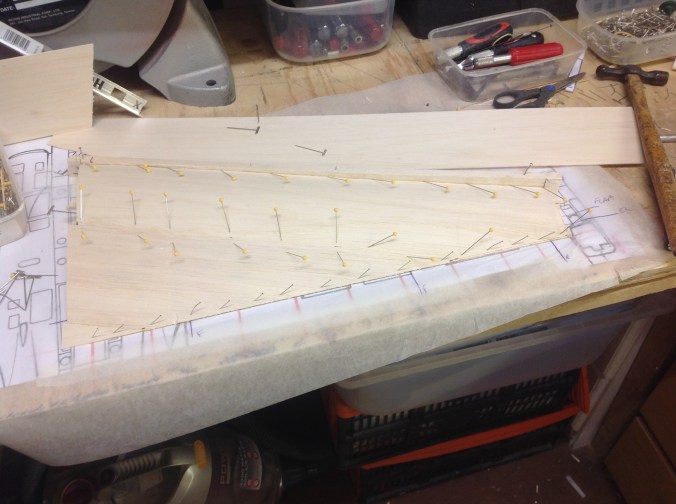

img_7388

Top sheet fitted then the wing is unpinned from the board

img_7783

Covering with thin glass fibre cloth and resin

img_7386



img_7404

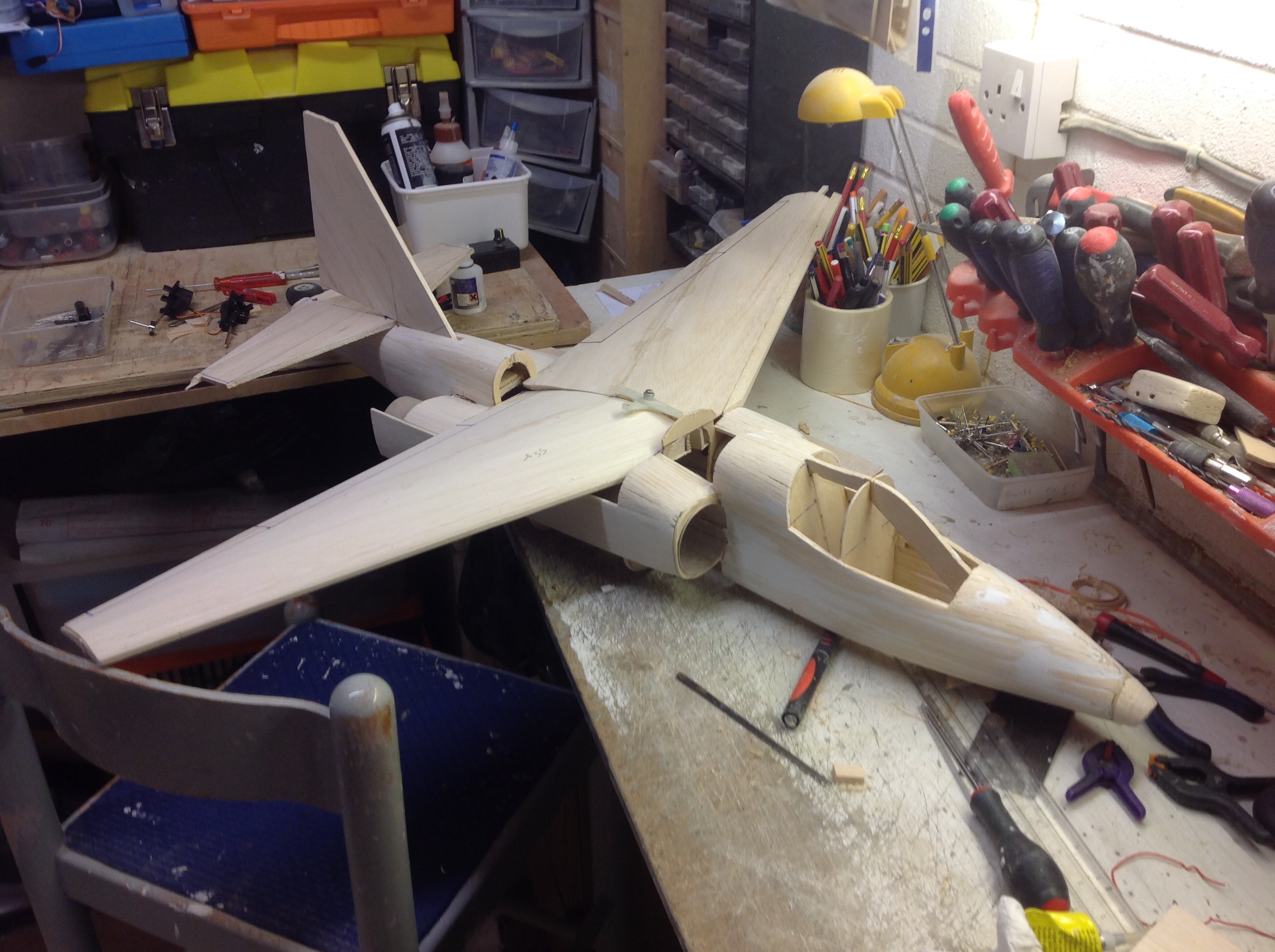

First fit to see how she looks

img_7795

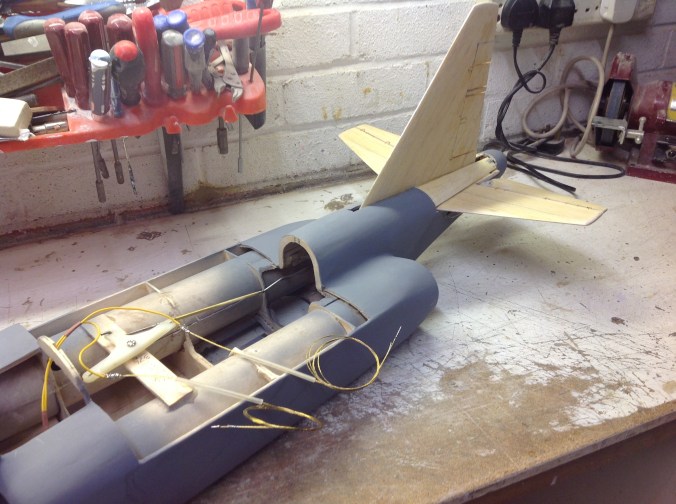

Fitting of bellcrank assembly

img_7943

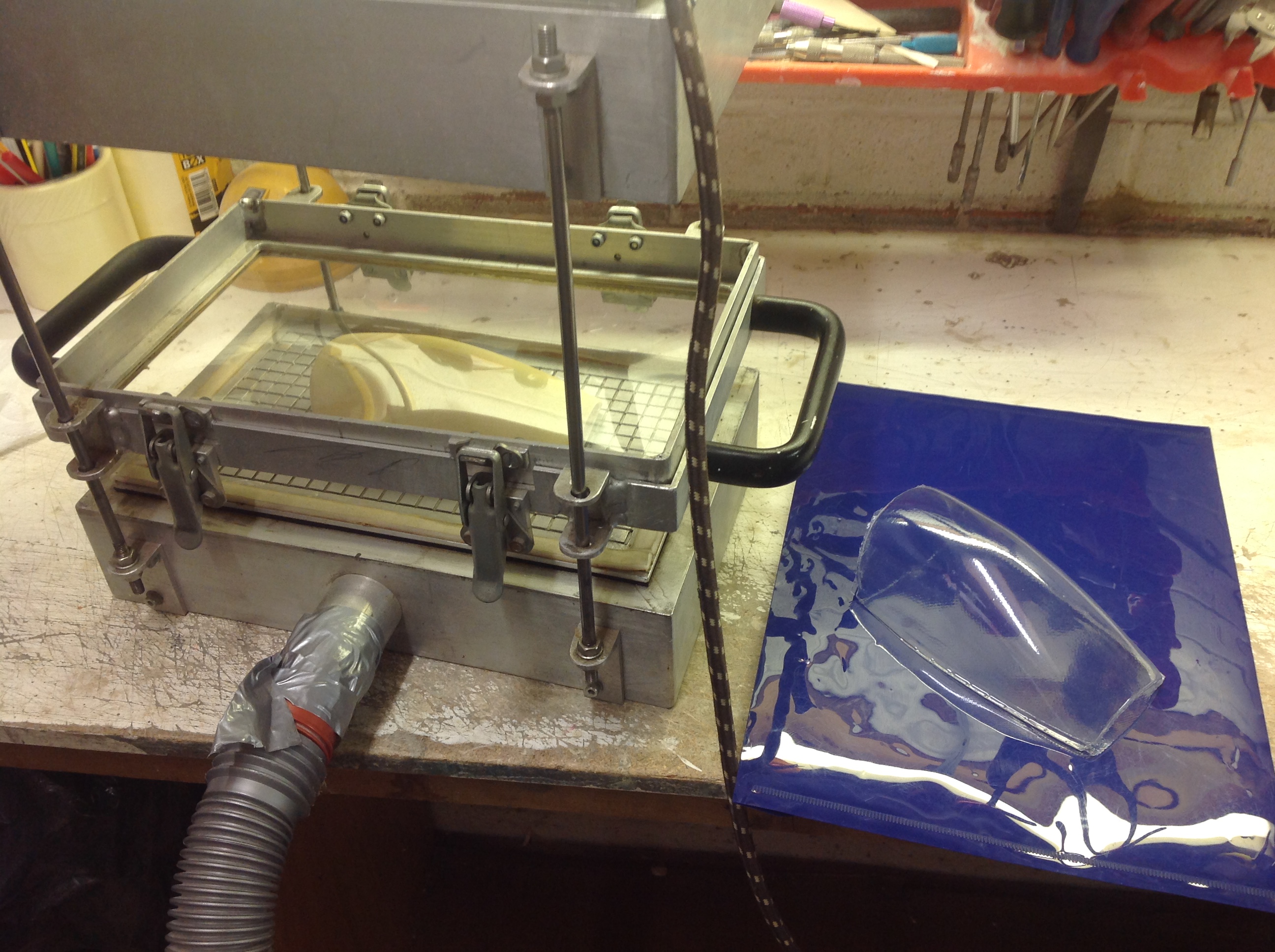

My small vacuum forming machine

img_8011

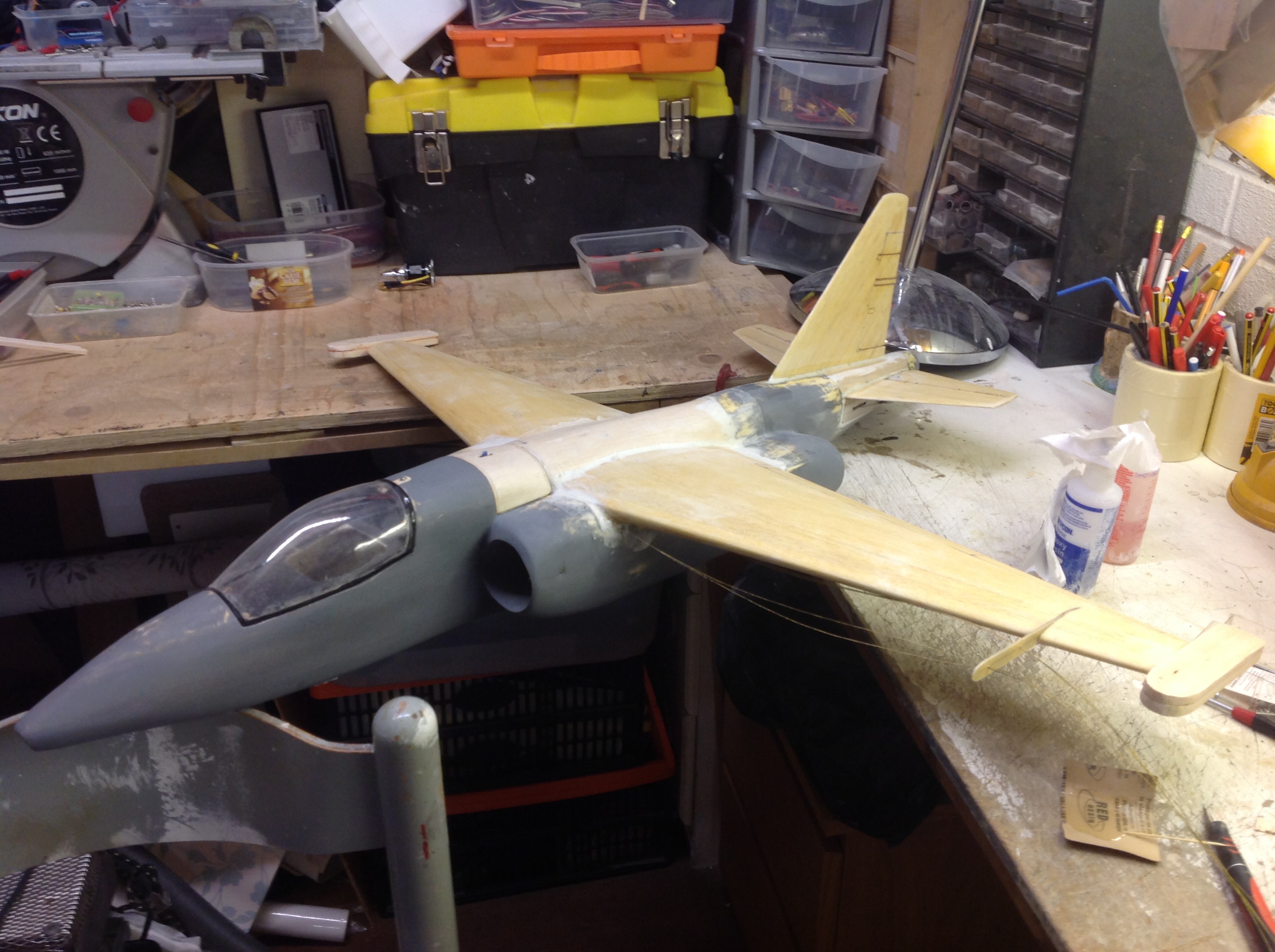

Final assembly

img_8047

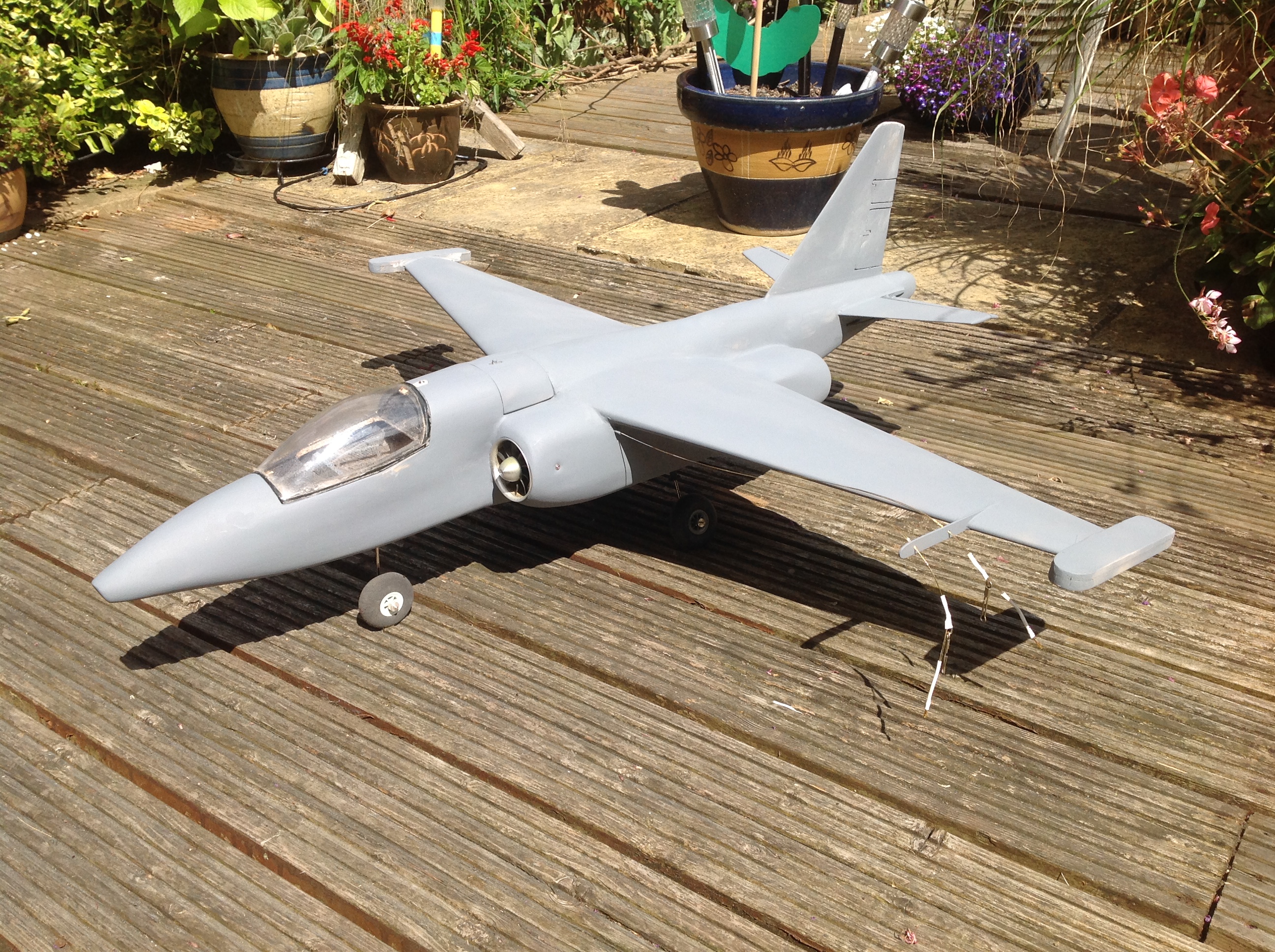

Ready for first test flights before finishing

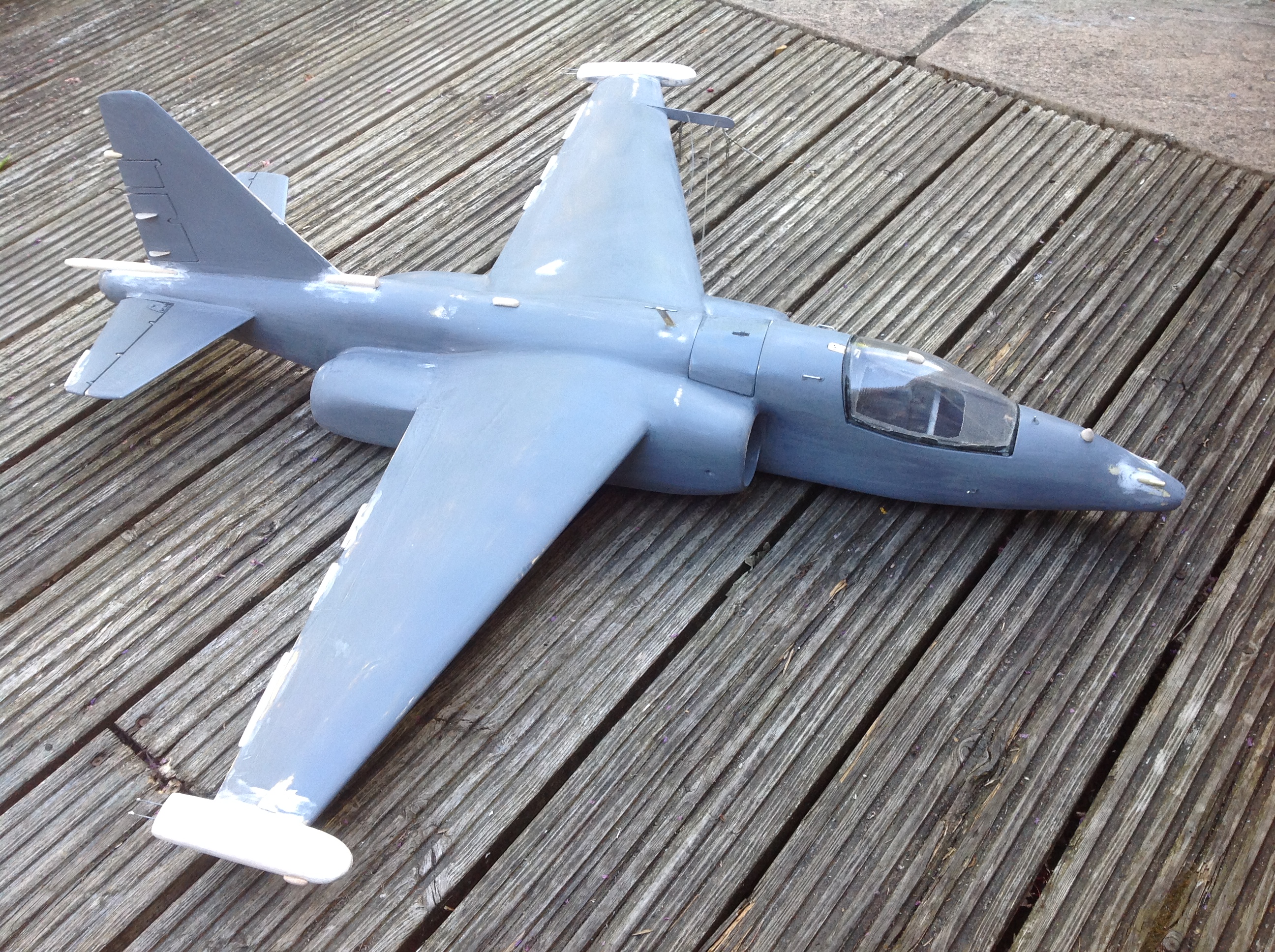

img_8073

Final finishing ready for paint work

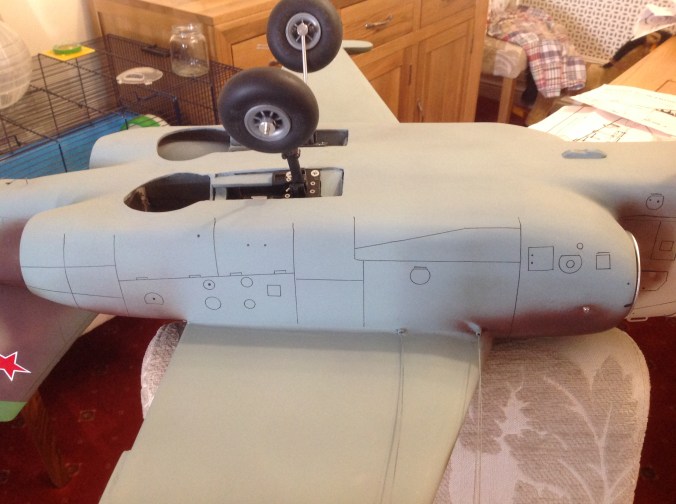

Twist and turn retracts

img_8109

img_8135

Ready for second test flights

img_8205

Looks nice in the air

img_8145

img_8191
img_8240

img_8237

img_8275

img_8279
